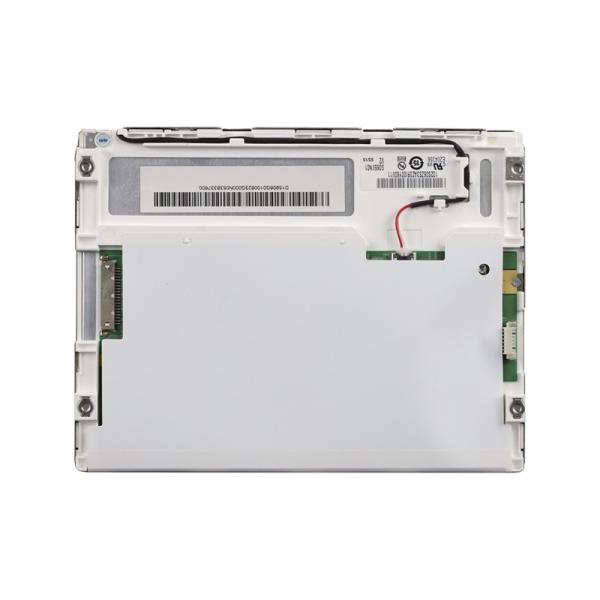

6.5 Inch AUO 640x480 TFT LCD Display with LVDS Interface 800 nits

  • 1
  • 2
  • 3

Brand Name : AISON

Model Number : G065VN01 V221

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : 80~100usd/pc

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 300k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

Name : 6.5 inch AUO G065VN01 V221

Resolution : 640X480

Outline dimension : 243(W)×184(H)×7(D) mm

Active area : 132.48(W)×99.36(H) mm

Interface : LVDS 20pin

View Direction : ALL

Luminance : 800cd/m2

Display mode : TFT,Normally Black

Operating temperatures : -30 ~ 80 °C

Storage temperatures : -30 ~ 80 °C

Power Supply : 3.3V

Contrast Ratio : 1000:1

Contact Now

6.5 Inch AUO 640x480 TFT LCD Display with LVDS Interface 800 nits

General Description
The G065VN01 V221 is a 6.5 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Hight Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, it is recommend that this lcd model be applied to Industrial, Outdoor High Brightness etc.

General Data

Model Name 6.5 Inch AUO 640x480 TFT LCD Display
Resolution 640x480
Model Size (W*H*T) 243(W)×184(H)×7(D) mm
Display Area (W*H) 132.48(W)×99.36(H) mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing ALL
Brightness 800 cd/m2
Pin number 20 pin
Contrast Ratio 1000:1
Operating temperatures -30 ~ 80 °C
Storage temperatures -30 ~ 80 °C

Drawing

6.5 Inch AUO 640x480 TFT LCD Display with LVDS Interface 800 nits

Product Details

6.5 Inch AUO 640x480 TFT LCD Display with LVDS Interface 800 nits

TFT Applications:

This AUO 6.5 inch 640X480 TFT Displays it is recommend that this model be applied to Industrial etc.

6.5 Inch AUO 640x480 TFT LCD Display with LVDS Interface 800 nits
